Availability: LEGACY - No longer available
Asus Prime H410M-K mATX LGA1200 Motherboard
Product Code: MAI652
$156.00 Inc GST
$135.65 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

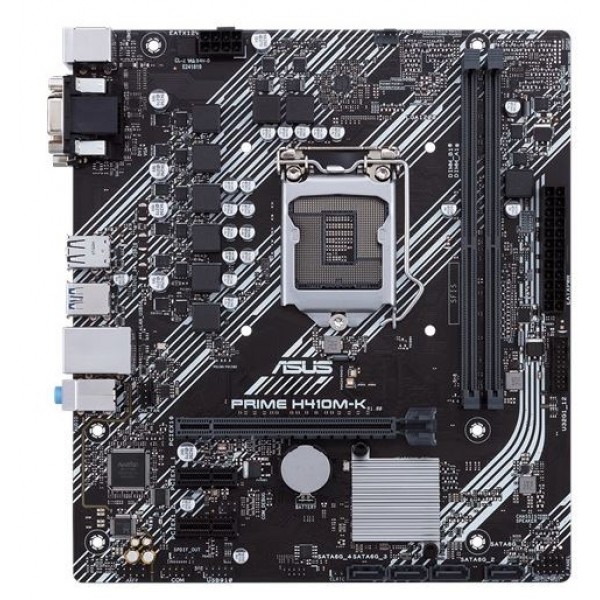

Asus Prime H410M-K mATX LGA1200 Motherboard

Intel® H410 (LGA 1200) mic-ATX motherboard with DDR4 support, DVI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header


Features

  • LGA1200 Socket
  • Intel H410
  • mATX (226x203mm)
  • 2xDIMM
  • 1xPCIe3.0x16(x16), 2xPCIe3.0 x1
  • 4x SATA
  • 2xUSB3.2 Type A (Gen 1), 4xUSB2.0
  • 1xD-Sub, 1xDVI-D
  • 36 Month Return to Base Warranty

Specifications

Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

5X Protection III: Multiple hardware safeguards for all-round protection

ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

Ultrafast connectivity: 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
ChipsetIntel H410
CPUIntel Socket 1200 for
10th Gen Intel Core,
Pentium Gold
and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Form FactormATX Form Factor (22.6 x 20.3cm)
Memory2x DIMM, Max. 64GB, DDR4 2933, 2800, 2666, 2400, 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
Onboard GraphicsIntegrated Graphics Processor
1x DVI-D
1x D-Sub
AudioRealtek® ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
LANRealtek® RTL8111H
Expansion SlotsIntel 10th Gen Processors
1x PCIe 3.0 x16 (x16 mode)

Intel H410 Chipset
2x PCIe 3.0 x1
Storage InterfaceTotal supports 4x SATA 6Gb/s ports

Intel® H410 Chipset:
4x SATA 6Gb/s port(s)
USBRear USB Port (Total 6)
2x USB 3.2 Gen 1 port(s)(2x Type-A)
4x USB 2.0 port(s)(2x Type-A)

Front USB Port (Total 4)
2x USB 3.2 Gen 1 port(s)
2x USB 2.0 port(s)
Internal I/O Connectors1x CPU Fan connector(s)
1x Chassis Fan connector(s)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4x SATA 6Gb/s connector(s)
1x S/PDIF out header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector(s) (AAFP)
1x Clear CMOS jumper(s)
1x System panel connector
1x COM port header
1x Speaker connector
Back Panel Connectors1x PS/2 keyboard (purple)
1x PS/2 mouse (green)
1x DVI-D
1x D-Sub
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 1 Type-A
4x USB 2.0
3x Audio jack(s)
Operating SystemWindows 10 64-bit
