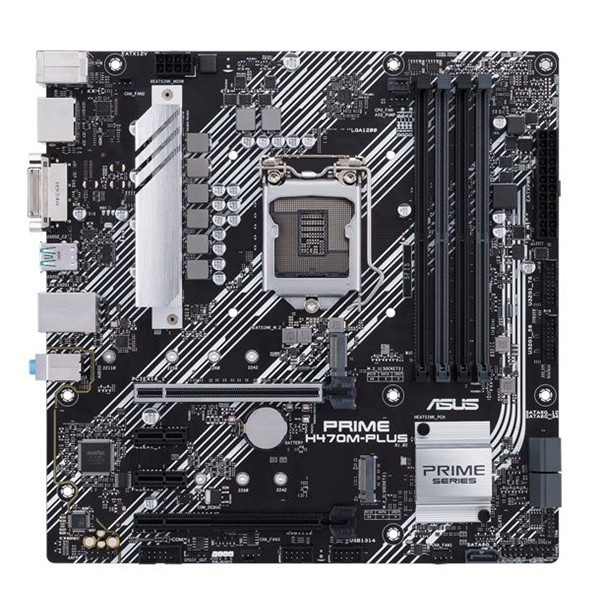

Asus Prime H470M-Plus mATX LGA1200 Motherboard
Asus Prime H470M-Plus mATX LGA1200 Motherboard
Availability: LEGACY - No longer available
Asus Prime H470M-Plus mATX LGA1200 Motherboard
LEGACY
Add to Wish List Compare this Product
Product Code: MAI638
$216.00 Inc GST
$187.83 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

Asus Prime H470M-Plus mATX LGA1200 Motherboard

Intel® H470 (LGA 1200) micro ATX motherboard with dual M.2,HDMI, DisplayPort, DVI, SATA 6 Gbps, Intel® 1 Gb Ethernet, USB 3.2 Gen 2 Type-A® and Type-C®


Features

  • LGA1200 Socket
  • Intel H470
  • mATX (244x244mm)
  • 4xDIMM
  • 1xPCIe3.0x16(x16), 1xPCIe3.0x16(x4), 2xPCIe3.0 x1
  • 1xM.2 SATA/PCIe 3.0, 1xM.2 PCIe 3.0, 5x SATA
  • 1xUSB3.2 Type A (Gen 2), 1xUSB3.2 Type-C (Gen 2), 2xUSB3.2 Type A (Gen 1), 2xUSB2.0
  • 1xHDMI, 1xDisplayPort, 1xDVI-D
  • RAID, Optane, 2-Way CrossFireX
  • 36 Month Return to Base Warranty

Specifications

Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

Comprehensive cooling: VRM heatsink, hybrid fan headers and Fan Xpert 4

ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking

Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Type-C® support
ChipsetIntel H470
CPUIntel Socket 1200 for
10th Gen Intel Core,
Pentium Gold
and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Form FactormATX Form Factor (24.4 x 24.4cm)
Memory4x DIMM, Max. 128GB, DDR4 2933, 2800, 2666, 2400, 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
Onboard GraphicsIntegrated Graphics Processor
1x DisplayPort 1.4
1x HDMI 1.4b
1x DVI-D
Multi-GPU SupportSupports AMD 2-Way CrossFireX Technology
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
LANIntel® I219-V 1Gb Ethernet
Expansion SlotsIntel® 10th Gen Processors
1x PCIe 3.0 x16 (x16 mode)

Intel® H470 Chipset
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x1
Storage InterfaceTotal supports 2 x M.2 slots and 5 x SATA 6Gb/s ports

Intel® H470 Chipset:
1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
5x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
USBRear USB Port (Total 6)
2x USB 3.2 Gen 2 port(s)(1x Type-A + 1x USB Type-C)
2x USB 3.2 Gen 1 port(s)(2x Type-A)
2x USB 2.0 port(s)(2x Type-A)

Front USB Port (Total 8)
4x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)
Internal I/O Connectors1x CPU Fan connector(s)
3x Chassis Fan connector(s)
1x AIO_PUMP connector
1x Lighting Control RGB Strip Header(s)
2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x SPI TPM header
5x SATA 6Gb/s connector(s)
1x S/PDIF out header(s)
1x 4-pin EATX 12 V Power connector
1x 24-pin EATX Power connector(s)
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector(s) (AAFP)
1x Clear CMOS jumper(s)
1x System panel connector
1x COM port header
Back Panel Connectors1x PS/2 keyboard/mouse combo port(s)
1x DVI-D
1x DisplayPort
1x HDMI
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 2 (1x Type-A + 1x USB Type-C)
2x USB 3.2 Gen 1 Type-A
2x USB 2.0
3x Audio jack(s)
Operating SystemWindows 10 64-bit
