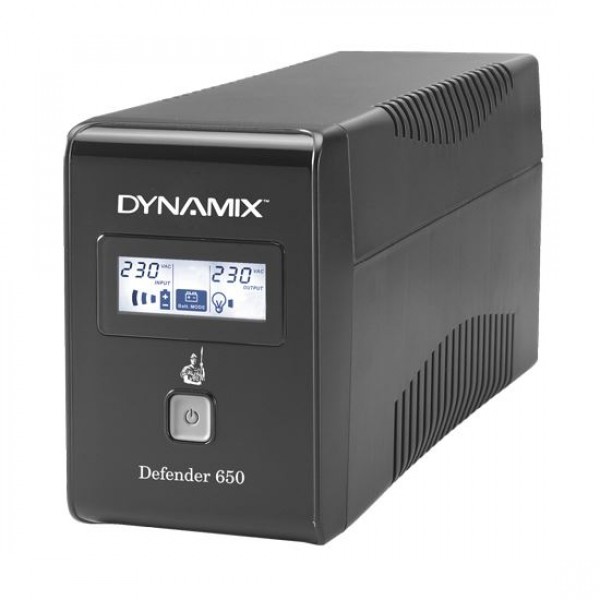

DYNAMIX Defender 650VA (390W) Line Interactive UPS

DYNAMIX Defender 650VA (390W) Line Interactive UPS, 936J Surge Protection, 2x NZ Power Sockets, Netguard Smart Monitoring. LCD Status Display.

The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user-replaceable battery and two Australia/NZ sockets make the Defender the complete package at this level. The Defender USB communication port is compatible with Synology NAS products. NetGuard™ UPS management software included.


Features

  • Surge Protection, Best in its Class
  • LCD Status Display
  • Australian/NZ outlets for UPS and Surge protection (x2)
  • Buck and boost AVR for voltage stabilisation
  • User replaceable battery
  • Silent Operation (No fans included)
  • Auto restart when AC returns
  • Off-mode charging
  • Cold start function
  • USB communication with sophisticated NetGuard® software
  • LCD Status Display
  • 24 Month Return to Base Warranty

Specifications


Capacity650V A / 390 W
TopologyLine Interactive


INPUT

Voltage240V AC (Nominal)
Voltage Range177-290V AV
Frequency Range 50/60Hz±5Hz (Auto Sensing)


OUTPUT

Output Voltage240Vac±10%
FrequencyAC mode tracks utility.
Battery mode 50Hz±1%
Frequency Range50Hz or 60Hz±1Hz
Transfer Time6ms (Typical)
Waveform (Battery Mode)Simulated Sine Wave
Outlets2x Surge Protection + UPS


BATTERY

Battery Type & Number 12Vx9AH (x1)
Typical Recharge Time6 hours recovery to 90% capacity
Backup Time (50% Load) 13min


PROTECTION

Full ProtectionOverload, discharge, thermal,
short circuit and overcharge protection
Surge Protection312Joules / 6500Amps


COMMUNICATIONS & MANAGEMENT

InterfaceUSB Interface
SoftwareNetGuard® supports Windows®,
Linux, Unix & MAC
LCD AlarmAC Mode, Battery Mode, Low Battery
(Batt. Mode), Fault, Overload
Audible AlarmBattery Mode, Low Battery (Batt. Mode),
Fault, Overload


PHYSICAL

Dimensions (D x W x H)328 x 100 x 145mm
Net Weight5.2kg
Temperature0°C - 40°C
Humidity0% - 90% (RH Non-Condensing)
Noise Level<5dB (no fan)


COMPLIANCE

SafetyEN62040-1-1 2003. IEC60950-1 : 2001
EMCEN62040-2 2006
RoHSDirective 2011 / 65 / EU



Categories: Uninterruptible Power Supply (UPS), Accessories
