Gigabyte H370 HD3 ATX LGA1151v2 Motherboard
Product Code: MGI3504
$229.00 Inc GST
$199.13 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

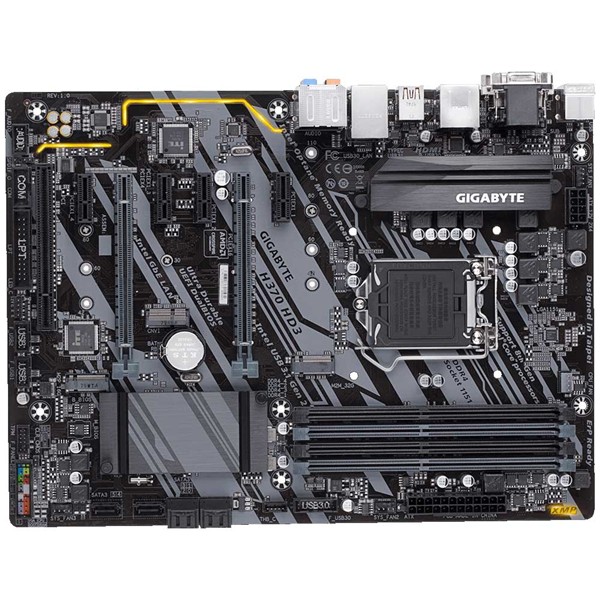

Gigabyte H370 HD3 ATX LGA1151v2 Motherboard

Intel H370 Ultra Durable motherboard with USB 3.1 Gen2 Type-A & USB3.1 Gen1 Type-C, Intel GbE LAN with cFosSpeed, Dual M.2, 7 colors RGB LED strips support, Intel CNVi WIFI upgradable slot, Smart Fan 5, CEC 2019, DualBIOS™, Anti-Sulfur Resistor


Features

  • Supports 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • Intel® CNVi 802.11ac Wave2 2T2R WIFI upgradable
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface
  • RGB FUSION supports RGB LED strips in 7 colors
  • Intel® Native USB 3.1 Gen2 USB Type-A
  • Intel® USB 3.1 Gen1 USB Type-C™
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Intel® Optane™ Memory Ready
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • 36 Month Return to Base Warranty

Specifications

ChipsetIntel H370
CPUIntel Socket 1151 for 8th Generation
Core i7
Core i5
Core i3
Pentium
Celeron Processors
L3 cache varies with CPU
Form FactorATX Form Factor
30.5 cm x 22.5 cm
Memory4x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
*To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
*The DVI-D port does not support D-Sub connection by adapter.
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
*Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
AudioRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LANIntel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots1x PCI Express x16 slot, running at x16 (PCIEX16)
*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1x PCI Express x16 slot, running at x4 (PCIEX4)
4x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1x PCI slot
1x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Multi-Graphics TechnologySupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage InterfaceChipset:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)
1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
6x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
USBChipset:
1x USB Type-C port on the back panel, with USB 3.1 Gen 1 support
1x USB 3.1 Gen 2 Type-A port (red) on the back panel
6x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
*The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
Internal I/O Connectors1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
3x system fan headers
1x RGB LED strip header
6x SATA 6Gb/s connectors
2x M.2 Socket 3 connectors
1x front panel header
1x front panel audio header
1x S/PDIF Out header
1x USB 3.1 Gen 1 header
2x USB 2.0/1.1 headers
1x Thunderbolt™ add-in card connector
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x parallel port header
1x serial port header
1x Clear CMOS jumper
Back Panel Connectors1x PS/2 keyboard/mouse port
1x D-Sub port
1x DVI-D port
1x HDMI port
1x USB Type-C port, with USB 3.1 Gen 1 support
1x USB 3.1 Gen 2 Type-A port (red)
4x USB 3.1 Gen 1 ports
2x USB 2.0/1.1 ports
1x RJ-45 port
6x audio jacks
Compatible Operating SystemsWindows 10 64-bit
