Availability: LEGACY - No longer available
Intel NUC8I3BEK i3-8109U 3.0GHz NUC Desktop Kit - Barebone - No Ram, SSD, OS included
Product Code: NUC132
$594.00 Inc GST
$516.52 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

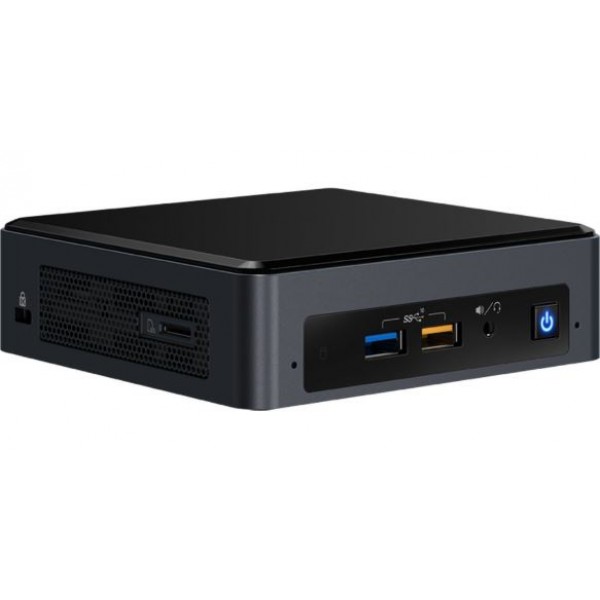

Intel NUC8I3BEK i3-8109U 3.0GHz NUC Desktop Kit - Barebone - No Ram, SSD, OS included

Get ready for spectacularly responsive performance from the Intel® NUC Mini PC kits with 8th Generation Intel® Core™ i3 processors. The latest generation of Intel® NUC kits let you or your customers build the exact system they want. From choosing chassis size to memory options, the benefit of building an Intel® NUC kit is the ability to completely customize the kit for your specific usage.


Features

  • NUC8i3BEK
  • Intel Core i3-8109U 3.00GHz
  • 2x DDR4-2400 SO-DIMM Slots
  • 1x M.2 PCIe/SATA SSD Slot
  • 1x M.2 2280 Available
  • 2x USB 3.0 (Front), 2x USB 3.0 (Rear), 1x HDMI 2.0a, 1x USB 3.1 Type-C (Gen 2)
  • 1x Gigabit Ethernet, 802.11ac
  • 36 Month Return to Base Warranty


Specifications

ProcessorIntel Core i3-8109U 3.00GHz Dual Core (Up to 3.60GHz, 4MB SmartCache)
MemoryDual Channel
2x DDR4-2400 SODIMMs
1.2V, 32GB Maximum
GraphicsIntel HD Graphics 620
1x HDMI 2.0a Port with 4K at 60Hz
1x USB 3.1 Gen 2 (10 Gbps) and DisplayPort 1.2 via USB-C
AudioUp to 7.1 surround audio via HDMI or DisplayPort signals
Headphone/microphone jack on the front panel
Dual array front mics on the chassis front
Peripheral Connectivity1x HDMI 2.0 Port with 4K at 60Hz
1x USB 3.1 Gen 2 (10 Gbps) and DisplayPort 1.2 via USB-C
2x Front USB 3.0 Ports (One Charging)
2x Rear USB 3.0
2x Internal USB 2.0 via header
Front Consumer Infrared Port
Storage1x M.2 22x42/80 (key M) slot for SATA3 or PCIe X4 Gen3 NVMe
Micro SDXC slot with UHS-I support
NetworkingIntel Gigabit Ethernet
Intel Wireless-AC 9560
Bluetooth v5.0
Power Adapter19V, 90W power brick
Compatible OSMicrosoft Windows 10
Dimensions (mm)117 x 112 x 51
