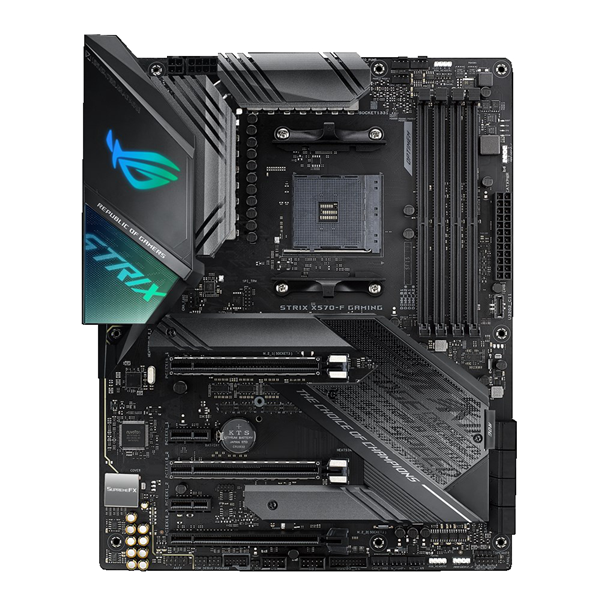

The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.
AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
Optimal Power Solution: 12+2 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience
| Chipset | AMD X570 |
|---|---|
| CPU | AMD AM4 Socket 3rd/2nd AMD Ryzen™ 2nd/1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Form Factor | ATX Form Factor (30.5 x 24.4cm) |
| Memory | 3rd Gen AMD Ryzen™ Processors 4x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors 4x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory Dual Channel Memory Architecture |
| Onboard Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback |
| LAN | Intel® I211-AT, 1x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors 2x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1x PCIe 4.0 x16 (max at x4 mode) 2x PCIe 4.0 x1 |
| Multi-Graphics Technology | 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology |
| Storage Interface | 3rd Gen AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| USB | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 4x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset: 1x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset: 4x USB 3.2 Gen 2 port(s) (4 at back panel, 3 x Type-A+1 x Type-C) AMD X570 chipset: 2x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset: 4x USB 2.0 port(s) (4 at mid-board) |
| Internal I/O Connectors | 1x PCH_FAN 1x AAFP connector 2x Aura RGB Strip Header(s) 2x Addressable Gen 2 header(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1x SPI TPM header 8x SATA 6Gb/s connector(s) 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 2x Chassis Fan connector(s) 1x AIO_PUMP connector 1x W_PUMP+ connector 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x Front panel audio connector(s) (AAFP) 1x Thermal sensor connector(s) 1x Clear CMOS jumper(s) 1x Node Connector(s) 1x System panel connector 1x T_Sensor Connector 1x M.2 Fan Header 1x USB 3.2 Gen 2 (up to 10Gbps) connector 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Back Panel Connectors | 1x DisplayPort 1x HDMI 5x USB 3.1 Gen 1 Type-A 8x USB 2.0 1x Optical S/PDIF out 5x Audio jack(s) 1x USB BIOS Flashback® Button(s) 4x USB 3.2 Gen 1 (up to 5Gbps) ports 3x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port |
| Operating System | Windows 10 64-bit |
