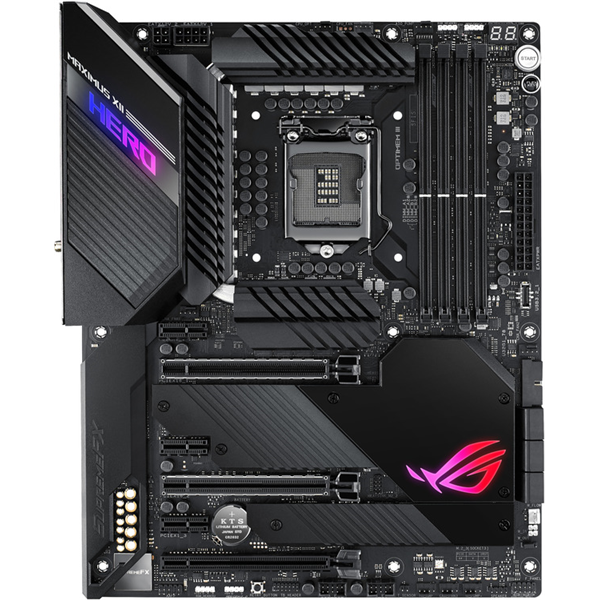

Asus ROG Maximus XII Hero (Wi-Fi) Z490 ATX LGA1200 Motherboard
Asus ROG Maximus XII Hero (Wi-Fi) Z490 ATX LGA1200 Motherboard
Availability: LEGACY - No longer available
Asus ROG Maximus XII Hero (Wi-Fi) Z490 ATX LGA1200 Motherboard
LEGACY
Add to Wish List Compare this Product
Product Code: MAI600
$766.00 Inc GST
$666.09 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

Asus ROG Maximus XII Hero (Wi-Fi) Z490 ATX LGA1200 Motherboard

ROG Maximus XII Hero is the perfect foundation to the Republic of Gamers. It's a motherboard that packs substantial power, smart cooling and faster memory support under a stealthy skin. Loaded with renowned ROG features, from AI overclocking and AI cooling to attention-grabbing Aura Sync illumination, Maximus XII Hero is ready to perform and crafted for customization.


Features

  • LGA1200 Socket
  • Intel Z490
  • ATX (305x244mm)
  • 4xDIMM
  • 2xPCIe3.0x16(x16 or dual x8), 1xPCIe3.0x16(x4 mode), 3xPCIe3.0x1
  • 2xM.2 SATA/PCIe 3.0, 1xM.2 PCIe 3.0, 6x SATA
  • 1xUSB3.2 Type-C (Gen 2), 3xUSB3.2 Type A (Gen 2), 4xUSB3.2 Type A (Gen 1), 2xUSB2.0
  • 1xHDMI
  • RAID, Optane, 3-Way/2-Way CrossfireX, 2 Way SLI
  • 36 Month Return to Base Warranty

Specifications

ChipsetIntel Z490
CPUIntel Socket 1200 for
10th Gen Intel Core,
Pentium Gold
and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Form FactorATX Form Factor (30.5 x 24.4cm)
Memory4x DIMM, Max. 128GB, DDR4 4800(O.C.), 4700(O.C), 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3200(O.C.), 3000(O.C.), 2933, 2800, 2666, 2400, 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
Onboard GraphicsIntegrated Graphics Processor
1x HDMI 1.4b
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- ESS™ ES9023 DAC + RC4580 OP AMP
- Supports up to 32-Bit/192kHz playback
LANIntel® I219-V 1Gb Ethernet
Marvell® AQtion AQC111C 5Gb Ethernet
ASUS LANGuard
Wireless Data NetworkIntel® Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth v5.1
Expansion SlotsIntel 10th Gen Processors
2x PCIe 3.0 x16 (x16 or dual x8)

Intel Z490 Chipset
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
Multi-Graphics TechnologySupports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
Storage InterfaceTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® Z490 Chipset:

1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*4
1x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready
USBRear USB Port (Total 10)
4x USB 3.2 Gen 2 port(s)(3x Type A + 1x USB Type-C)
4x USB 3.2 Gen 1 port(s)(4x Type A)
2x USB 2.0 port(s)(2x Type A)

Front USB Port (Total 7)
1x USB 3.2 Gen 2 front panel connector port(s)
2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)
Internal I/O Connectors1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
3x Chassis Fan connector(s)
1x AIO_PUMP connector
1x H_AMP fan connector
1x W_PUMP+ connector
1x W_IN header
1x W_OUT header
1x W_FLOW header
1x AAFP connector
2x Aura RGB Strip Headers
2x Addressable Gen 2 header(s)
1x USB 3.2 Gen 1 front panel Type-C connector
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
3x M.2 Socket 3
6x SATA 6Gb/s connector(s)
1x Thunderbolt header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x 4-pin ATX 12V Power connector(s)
1x Thermal sensor connector(s)
1x ReTry button
1x System panel connector
1x Speaker connector
1x Start button
1x FlexKey button
Back Panel Connectors1x Marvell® AQtion AQC111C 5Gb Ethernet
1x Intel® I219-V 1Gb Ethernet
1x HDMI
4x USB 3.2 Gen 2
4x USB 3.2 Gen 1
2x USB 2.0
1x Optical S/PDIF out
1x Clear CMOS button(s)
1x USB BIOS FlashBack™ Button(s)
1x ASUS Wi-Fi Module
5x Gold-plated audio jacks
Operating SystemWindows 10 64-bit
