Availability: LEGACY - No longer available
Chainway C71-SE UHF RFID Reader 2GB + 16GB Android 6.0
Product Code: C71-SE
$813.00 Inc GST
$706.96 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Available Options

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

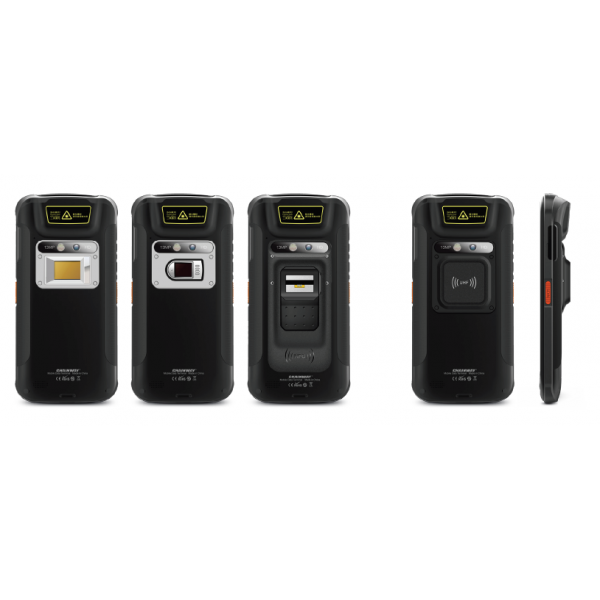

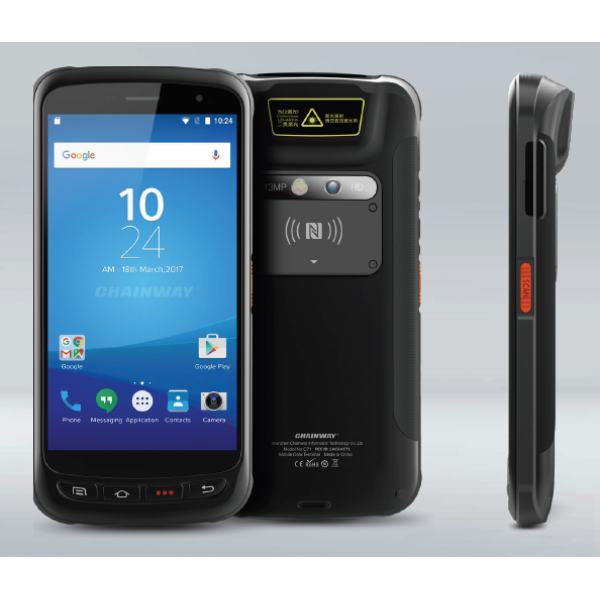

Chainway C71-SE UHF RFID Reader

Chainway C71 with abundant functions is an Android rugged mobile computer. With its powerful processor, stable wireless connections and comprehensive data capture options, you can find this easy-to-deploy device a valuable helper to increase productivity in logistics, warehousing, retail, identity verification, meter reading, IC card reading and etc.


Features

  • 12 Month Return to Base Warranty


Specifications



Performance

CPU: Cortex-A53 Octa-core 2.5 GHz

RAM+ROM: 2GB + 16GB

Expansion: Supports up to 128 GB Micro SD card

Operating System: Android 6.0



Communication

WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

WWAN (China): 2G: 900/1800 MHz

3G: WCDMA: B1/B8

CDMA2000 EVDO: BC0

TD-SCDMA: B34/B39

4G: B1/B3/B5/B8/B34/B38/B39/B40/B41

WWAN (Europe): 2G: 850/900/1800/1900 MHz

3G: B1/B2/B4/B5/B8

4G: B1/B3/B5/B7/B8/B20/B40

WWAN(America): 2G: 850/900/1800/1900 MHz

3G: B1/B2/B4/B5/B8

4G: B2/B4/B7/B12/B17/B25/B66

WWAN (Others): Depending on the country's ISP

Bluetooth: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS

GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna



Physical Characteristics

Dimensions: 164.2 x 78.8 x 17.0 mm / 6.46 x 3.1 x 0.67 in. (for standard version)

Weight: <288 g / 10.15 oz. (for standard version)

Display: 5.2'' IPS FHD 1920x1080

Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power: Main battery: Li-ion, rechargeable, built-in 5000 mAh

Standby: over 350 hours

Continuous use: over 12 hours (depending on user environment)

Charging time: 3-4 hours (with standard adaptor and USB cable)

Expansion Slot: 1 slot for SIM card, 1 slot for SIM or TF card

Interfaces: USB 2.0 Type-C, OTG, TypeC headphones supported

Audio: Speaker, 2 microphones

Keypad: 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

Sensors: Gravity sensor, light sensor, proximity sensor, vibration motor



Developing Environment

SDK: Chainway Software Development Kit

Language: Java

Tool: Eclipse / Android Studio



Data Collection

Rear Camera: 13 MP Autofocus with flash
Front Camera (optional):
5 MP camera



User Environment

Operating Temp.: -4 oF to 122 oF / -20 oC to 50 oC

Storage Temp.: -40 oF to 158 oF / -40 oC to 70 oC

Humidity: 5% RH - 95% RH non condensing

Drop Specification: Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing: IP65 / IP67 per IEC sealing specifications

ESD: ±15 KV air discharge, ±6 KV conductive discharge


Accessories

Standard: AC Adaptor, USB Cable, Lanyard, etc.

Optional: Cradle, Holster , etc.



NFC (optional)

Frequency: 13.56 MHz

Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips: M1 card (S50, S70), CPU card, NFC tags, etc.

Range: 2-4 cm



UHF (Optional)

Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz

* For detailed specification, please check C71 UHF data sheet



Barcode Scanning (Optional)

1D Linear Scanner: Zebra: SE965; Honeywell: N4313

1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Imager Scanner: Zebra: SE4710 / SE2707; Honeywell: N6603

2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.



Iris (optional)

Rate: < 150 ms

Range: 20-40 cm

FAR: 1/10000000

Protocol: ISO/IEC 19794-6,GB/T 20979-2007

*Iris is alternative to front camera.


HF (optional)

Frequency: 13.56 MHz

Protocol: ISO14443A/B, ISO15693

Chips: M1 card (S50/S70), M0 (Ultralight), M3 (Desfire D40/D41/D81), CPU_A card, CPU_B card, ICODE II, TI2048, LRI64K, Others for customization

Range: 3-8 cm


InfraRed (optional)

Frequency: 38 kHz

* For detailed specification, please check C71 InfraRed data sheet


Fingerprint (optional)

Sensor: Capacitive TCS1 / TCS2; Optical Morpho CBM-E3

* For detailed specification, please check C71 Fingerprint data sheet


PSAM (optional)

Card slot: 2 slots for PSAM cards

Protocol: ISO7816 T=0, T=1
