With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

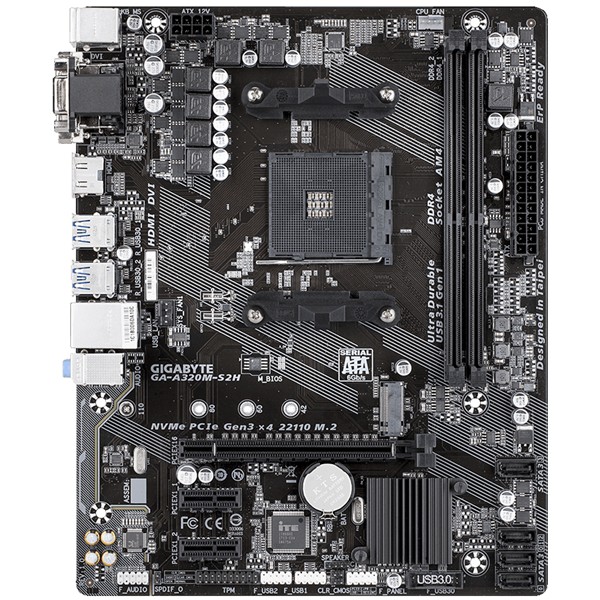

| Chipset | AMD A320 |
|---|---|
| CPU | AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors |
| Form Factor | mATX Form Factor (24.4 x 19.5cm) |
| Memory | 2x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules *Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor: 1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz *Support for HDMI 1.4 version. Maximum shared memory of 2 GB *Actual support may vary by CPU. |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1x PCI Express x16 slot, running at x16 (PCIEX16) *Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Multi-Graphics Technology | N/A |
| Storage Interface | 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support) *Actual support may vary by CPU. *Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x system fan header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB 3.1 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1x speaker header 1x Clear CMOS jumper 1x chassis intrusion header |
| Back Panel Connectors | 1x PS/2 keyboard port 1x PS/2 mouse port 1x D-Sub port 1x DVI-D port 1x HDMI port 4x USB 3.1 Gen 1 ports 2x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks (Line In, Line Out, Mic In) |
| Operating System | Support for Windows 10 64-bit Support for Windows 7 64-bit *Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
